Description

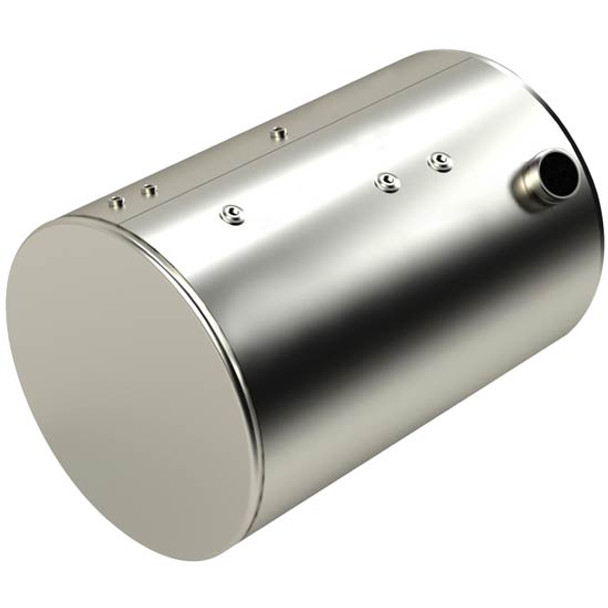

Driver Side 100 Gallon- 26 X 45.5 Inch Aluminum Fuel Tank- Rear Fill
Get your BESTfit Replacement tank at 4 State trucks. This is a fuel tank for a 2011 & newer International Prostar, measuring 26 inches x 45.5 inches and 100 gal. with driver side rear fill.
* High Quality Fuel Tank* Made Of 11 Gauge Aluminum
* Dimensions:
- 26 Inch Diameter
- 43.5 Inch Length Seam To Seam
- 45.5 Inch Over All Length
* Gallons U.S. - 100
* Driver Side
* Without Sending Unit Hole
* Filler Neck - Rear Fill
- 4.5 Inches From Rear Weld Seam
- 11.75 Inches Above Horizontal Weld Seam
* Vent Holes
- 0.50 Inches NPT
- 14.50 Inches From Front Weld Seam
- 2.00 Inches Above Horizontal Weld Seam
- 27.00 Inches From Front Weld Seam
- 4.50 Inches Above Horizontal Weld Seam
- 34.00 Inches From Front Weld Seam
- 4.50 Inches Above Horizontal Weld Seam
* Pickup Port - Tubes Built In To Tank
- 9.50 Inches From Front Weld Seam
- 1.00 Inch Below Horizontal Weld Seam
* Return Port - Tubes Built In To Tank
- 21.50 Inches From Rear Weld Seam
- 1.00 Inch Below Horizontal Weld Seam
* This Tank Has Metric Fittings On The Pickup And Return Tubes
* Caps And Fittings Sold Separately
* Welded Seams To Prevent Leakage
* CNC Laser Technology For Precision Cuts
* DOT Compliant
* Sold Individually
* Warranty On Fuel Tank Against Defects In Workmanship & Material From Date Of Purchase
***High Quality Aftermarket Replacement Part (Not OEM)***
* Replaces OE Numbers 3687876C91
Please Verify Manifold Style, Dimensions, Filler And Fittings For Sizes And Locations Before Purchasing Fuel Tanks, There May Be More Than One Option For Your Year, Make And Model
Fitment
* Fits International ProStar 2011 thru 2018
* Please Verify Manifold Style, Dimensions, Filler And Fittings For Sizes And Locations Before Purchasing Fuel Tanks, There May Be More Than One Option For Your Year, Make And Model
